Contents
Opamp pinouts
There are three columns of pinout data. The 'Basic pins' column uses a
coding scheme to describe the pins which must be connected for basic
operation. These include the input, output and supply pins for most
opamps. A minority of devices need additional connections, which are
suffixed to the basic scheme as follows:
c? - Compensation pin
g? - Ground pin
z?? - Autozero capacitor pins which require a capacitor
x? - Miscellaneous extra pin
In these cases ? specifies the actual pin number.
The 'Disable pins' column specifies the pin number or numbers of any
disable inputs. The l prefix is for devices with a 'low to disable' pin
and the h prefix is for 'high to disable' pins.
The 'Null pins' column specifies the pin numbers for null pins, which are also known as offset trim pins.
Singles
![s5b1p1 s5b1p1](s5b1p1.gif)
![s5b1p2 s5b1p2](s5b1p2.gif)
![s5b2p1 s5b2p1](s5b2p1.gif)
![s6b1p1 s6b1p1](s6b1p1.gif)
![s6b2p1 s6b2p1](s6b2p1.gif)
![s6b3p3 pinout](s6b3p3.gif)
![s7b1p1 s7b1p1](s7b1p1.gif)
![s8b1p1 s8b1p1](s8b1p1.gif)

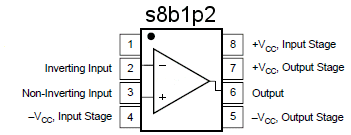

![s8b1p2 s8b1p2](s8b1p2.gif)
![s8b2p3 s8b2p3](s8b2p3.gif)
![s8b2p4 s8b2p4](s8b2p4.gif)
![s8b3p5 s8b3p5](s8b3p5.gif)
![s12b1p1 s12b1p1](s12b1p1.gif)
![s14b1p1 s14b1p1](s14b1p1.gif)
![s14b1p3 s14b1p3](s14b1p3.gif)
![s14b2p2 s14b2p2](s14b2p2.gif)
![s14b2p3 s14b2p3](s14b2p3.gif)
![s16b1p1 s16b1p1](s16b1p1.gif)
![s16b2p2 s16b2p2](s16b2p2.gif)
![s16b3p3 s16b3p3](s16b3p3.gif)

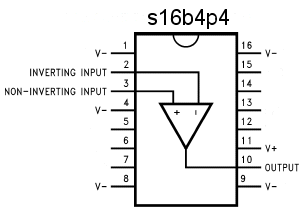

![s16b4p4 s16b4p4](s16b4p4.gif)
![s20b1p1 s20b1p1](s20b1p1.gif)
![s20b2p2 s20b2p2](s20b2p2.gif)
![s20b2p4 s20b2p4](s20b2p4.gif)
![s20b3p3 s20b3p3](s20b3p3.gif)
Duals
![d8b1p1 d8b1p1](d8b1p1.gif)
![d8b2p2 d8b2p2](d8b2p2.gif)
![d10b1p1 d10b1p1](d10b1p1.gif)
![d10b2p2 d10b2p2](d10b2p2.gif)
![d14b1p1 d14b1p1](d14b1p1.gif)
![d14b2p2 d14b2p2](d14b2p2.gif)
![d14b3p3 d14b3p3](d14b3p3.gif)
![d16b1p1 d16b1p1](d16b1p1.gif)
![d16b2p2 d16b2p2](d16b2p2.gif)
![d16b3p3 d16b3p3](d16b3p3.gif)
Triples
![t14b1p1 t14b1p1](t14b1p1.gif)
![t16b1p1 t16b1p1](t16b1p1.gif)
Quads
![q14b1p1 q14b1p1](q14b1p1.gif)
![q16b1p1 q16b1p1](q16b1p1.gif)
